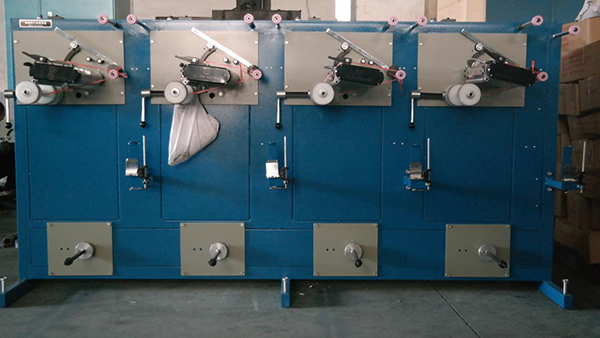

牵引绳高速变频倒筒机

张力测量仪厂家 2018-01-24


  特点及应用| Characteristics and Application
  卷绕机主要用于纤维卷绕,也可在轻工、纺织、电子等生产领域使用。本机器具有丝筒成形好,张力恒定,能耗低等特点。
  技术参数:
  卷绕机绕丝线速度:250m/min
  电源:AC380V  50HZ
  电机功率:500W
  连接电缆3×2.5   R.S.J.MP
  卷绕筒管尺寸: Φ94(内径)×Φ104(外径)×290(长度)
  卷绕成型尺寸:Φ0-250MM-250MM
  往复行程:250mm
  单锭面板尺寸:宽×高(mm)490×330
  The winding machine is mainly used for fiber winding, and also can be used in light industry, textile, electronics and other production areas.The machine has the characteristics of good silk tube forming, constant tension and low energy consumption
  Technical parameters:
  Winding speed:250m/min
  Power:AC380V  50HZ
  Motor power:500W
  Connect the cable:3X2.5  R.S.J.MP
  Winding bobbin size:Inside diameter x Outside diameter x length(mm)94X104X290(The inner diameter and length have different requirements can be customized in the range)
  Winding the size:Φ0-250MM-250MM
  Reciprocating stroke:250mm
  Single spindle panel size:Wide x high(mm)490X330
